EC135
At a glance
- Max weight: 6,570 lb
- Capacity: 1/2 pilots + 6/7 passengers
- Powerplant: 2 Pratt & Whitney Canada PW206B3 or 2 Turbomeca Arrius 2B2+
- Fast cruise speed: 136 kts.

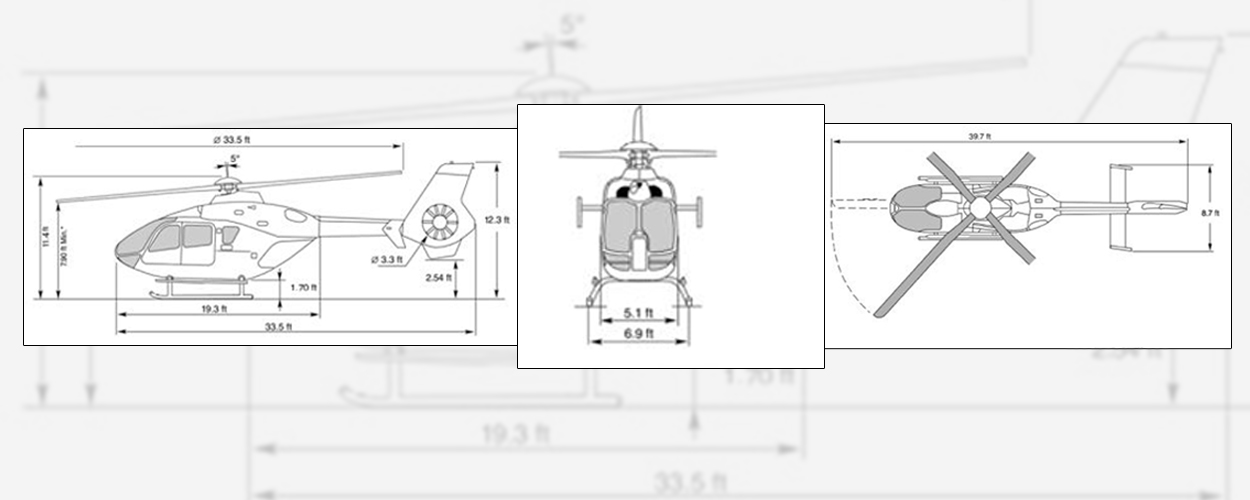

External dimensions
- Overall length with blade in front: 39.7 ft.
- Minimum width with all blades: 33.5 ft.
- Overall width with 2 opposite blades removed: 8.7 ft.
General data
- Empty weight of standard aircraft: 3,267 lbs.
- Maximum takeoff weight: 6,570 lbs.
- Useful load: 3,303 lb
- Maximum takeoff weight (with external load): 6,570 lbs.
- Usable fuel capacity (standard tank): 185 gal.
- Powerplant: 2 Pratt & Whitney Canada PW206B3 or 2 Turbomeca Arrius 2B2+
- Cabin volume: 173 cu. ft.
- Standard seating capacity: 1+6/7 or 2+5/6
Performance data
- Never exceed speed: 140 kts.
- Fast cruise speed: 136 kts.
- Maximum range (with no reserves): 328 nm.
- Maximum endurance (with no reserves):3.5 hrs.
- Hover In ground effect ceiling (5 ft. skid height): 12,700 ft.
- Hover out of ground effect ceiling: 7,000 ft.
- Takeoff power per engine: 708 shp.
- Rate of climb (all engines operative, MCP): 1,560 fpm.
